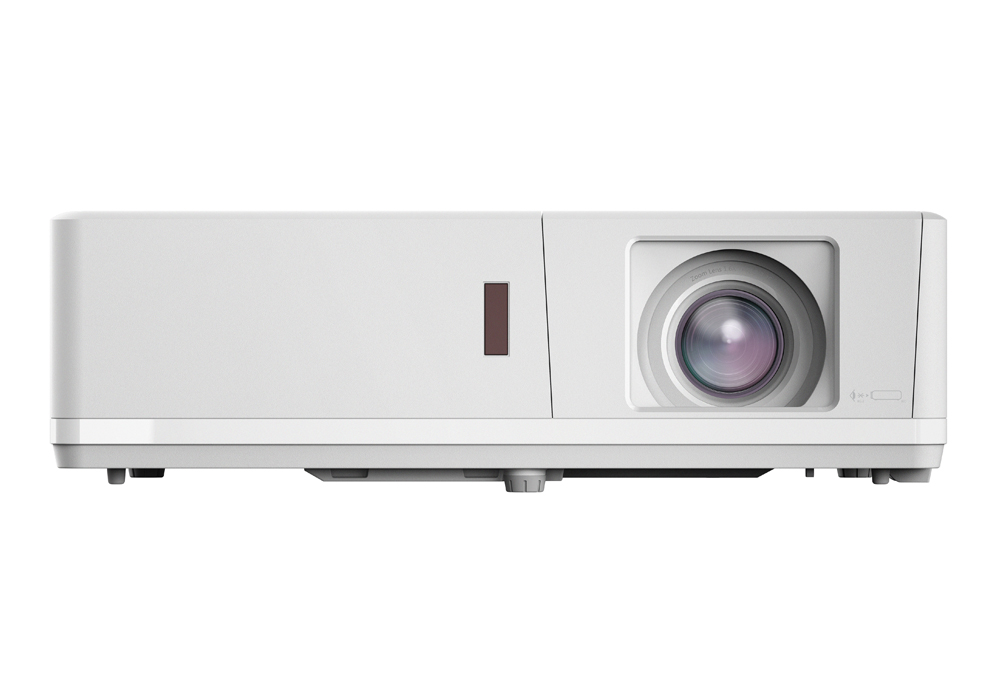

Optoma ZH506

  • The world’s smallest and lightest laser projector*
  • The world’s 1st* projector compatible with 4K & HDR
  • Optoma DURACORE Technology, IP6X dust resist provides good brightness and reliability
  • Up to 30,000 hours** laser light source life and virtually zero maintenance for system
  • Amazing colour, 99% Rec.709 colour gamut coverage to render lifelike images
  • Big 1.6x zoom & vertical lens shift with smallest size among competition make it labor and time saving for installation
  • Tilt free orientation, including portrait mode

Focusing on its brightness, world’s smallest and lightest compact design and useful vertical lens shift in the 5,000 to 6,000 lumens class,  the ZH506 is offering best value for the entry professional installation market. This projector is perfect for those applications that simply require the brightness level, ease of installation,  with minimum maintenance for up to 30,000 hours**. Delivering outstanding reliability, high intensity brightness, compact design, stunning colours and spectacular image quality, The ZH506 is precision engineered to power larger than life experiences.

The ZH506 is the perfect solution for businesses, conference rooms, higher education, auditoriums, exhibitions, digital signage, entertainment venues, projection mapping, and simulation.

Category: SKU: Optoma-ZH506
  • Features
  • Specifications
  • Downloads

The world’s smallest & lightest laser projector*

Compact size and light weight makes only one man for installation possible, minimize your labor cost, more easy on set up.

*Among comparison for all laser projector in the 5,000 to 6,000 lumens class as of February 2019.

4K / HDR Compatible

The 506 series is the world’s 1st* projector capable to accept native 4K signals and compatible with HDR10.

High dynamic range (HDR) technology improves contrast ratio, brightness, and color depth on the display, delivers brighter whites and deeper black levels. It enhances the details and depth of field, making the images clearer and more realistic.

Robust & Reliable Optoma DURACORE

This projector is designed with Optoma’s Airtight Optical Engine with IP6X certification.The airtight enclosure resists dust particles and ensures a long lasting, reliable and maintenance free experience, and ultimate brightness consistency and reliability. The Mercury free laser light source is rated for up to 30,000 hours** enabling a low total cost of ownership.

Amazing Color

This project achieves 99% Rec. 709 coverage to render lifelike images that will wow your audience.

1.6x Zoom Range

A large zoom range enables multiple placement possibilities at a variety of distances from the projection screen.

An advantage to this is that expensive interchangeable lens projectors can be substituted with a more cost effective solution whilst still retaining a diverse choice of positioning options.

Vertical Lens Shift

Simplify installation with lens shift, which provides a wide range of projector placement possibilities.

4 – Corner Adjustment

By individually adjusting each corner of the image, it eliminates any crooked or distorted images in off-angle or restricted space installations for that perfect picture.

Color Matching Mode

The color matching system, combines accurate measurements across multiple projectors creates seamless blends every time.

24/7 operation

All ProScene projectors are designed for continuous 24/7 operation. Only industry proven components are used to ensure superior reliability.

360° and portrait projection capability

Images can be projected over a full 360° range along the vertical axis, including reproduction on a ceiling or floor. This projector can also be placed in portrait mode for applications such as digital signage or for tall thin projection areas.

Network control protocols

Versatile System Integration Control Protocols Crestron RoomView, Extron’s IP Link, AMX dynamic device discovery, PJ-Link, Telnet and HTTP protocols are fully supported, allowing the series to be controlled across a network, keeping you in control, wherever you are.

AV Mute

In situations where only absolute darkness is required, this projector can provide a total blackout that functions like mechanical shutter.  The change between normal projection to a total black image and vice versa is instantaneous.

Low Noise: Quieter than a Whisper

Only 31dB in ECO mode.

Quick start-up and shutdown

This projector features quick start-up and shutdown and reaches full brightness quickly. To maximise energy saving it also includes a ‘pause projection’ feature where the light source can be completely shut off. Unlike conventional lamp based projectors, the laser- light source requires minimal cool-down time.

Display Technology

DLP

Native Resolution

Brightness

Contrast

Light Source

Light Source Life

30,000 hours to 50% brightness (Eco mode)

Throw Ratio

Zoom Type

1.6x Manual

Lens Shift

I/O Connectors

HDMIx2 (one MHL), USB power(5V/1.5A), VGA-In 1 x1, Composite x1, Audio-In x1 (Mic), Audio-In x1, Audio out x1, VGA Out x1, 12V Out x1, Kensington Lock x1, RS232 x1, RJ45 x1

Speaker (Watts)

10W x 2

Keystone Correction

Weight (Kg)

Dimensions (W x D x H) (mm)

374 x 302 x 107 (excluded adjustment feet)

Aspect Ratio

Offset

103% – 118%

Projection Screen Size

20.2″- 322.6“

Projection Distance

1.0 ~ 10 M, 1.0 ~10 m

Projection Lens

F/2.5~3.26; f=20.91~32.62mm, 1.6x Manual Zoom

Uniformity

80%

Computer Compatibility

UHD, WUXGA,1080P,UXGA, SXGA+,SXGA ,WXGA+,WXGA,720P,XGA,SVGA,VGA Compression, VESA standards, PC & Macintosh compatible

Video Compatibility

480i/p, 576i/p, 720p/1080i (50/60Hz), 1080p (24/50/60Hz), 2160p(24/50/60Hz)

3D Support

Full 3D – The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.

Horizontal Scan Rate

15.375~91.146 KHz

Vertical Scan Rate

24 – 85Hz

Displayable Colors

1073.4 million colors (10 bit)

Noise Level

Power Supply

100–240V, 50–60Hz, auto-switching

Power Consumption

Typ. 321W@110VAC, 310W@220VAC, Eco Standby : <0.5W, Active Standby : <2W

360-operation

Yes

Portrait Mode

Yes

Projection Method

360° operation, Portrait mode supported

Heat Dissipation

1,164 BTU/h @220VAC, Max. 1,201 BTU/h @110VAC
